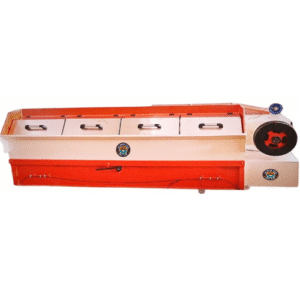

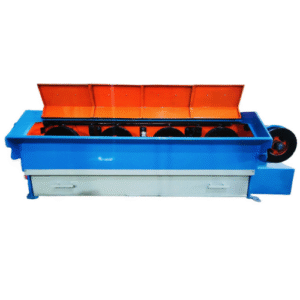

ROD BREAK DOWN FOUR SPINDLE

FEATURES

Digital Motor Control: Digital control for motors allows for computer operation.
• Lubrication: Transmission gears and bearings are enforced with lubricant.
• Single Spooler: Single spooler for wire winding.
• Dust Removal: Air filter and magnetic system remove dust from the machine gear.
• Automatic Die Size Setting: The final die size is set automatically through the PLC and displayed on the monitor.
• Speed: Speed options of 7-10 m/s are available based on customer requirements and size is also matter for running speed.
• Synchronized Drawing & Capstan: The drawing and final capstan motors operate synchronously and automatically.
• Wire Drawing Process Monitoring: Details about the wire drawing process are displayed on the monitor for
• improved efficiency. Single Spooler: Single spooler for wire winding.
• The machine will stop automatically while running if the wire will break.
• The production machine will halt automatically once the specified meter reading is achieved.

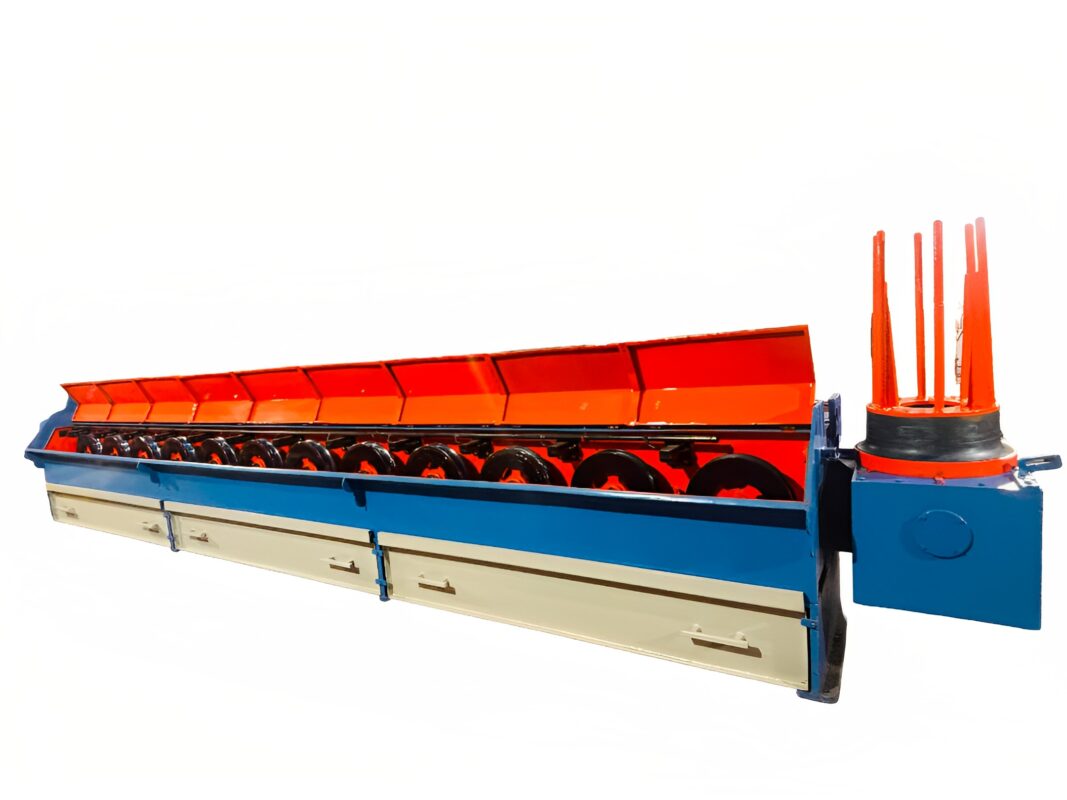

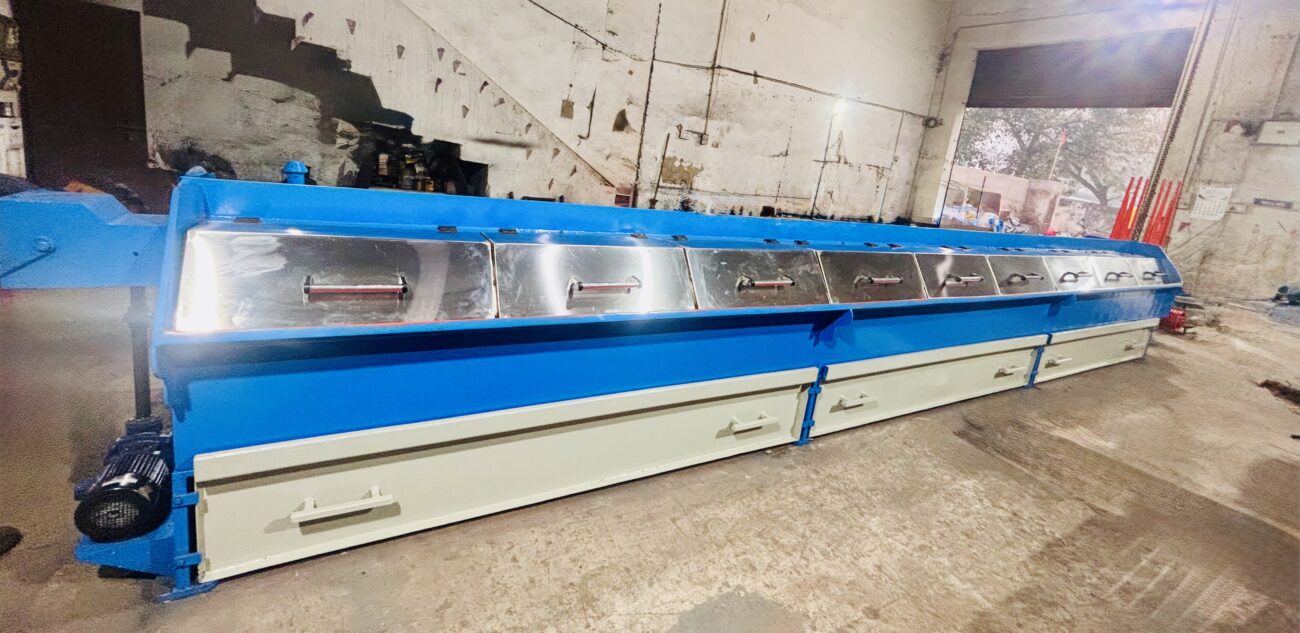

DG Mech Tech Pvt. Ltd. manufactures a stepped cone type rod breakdown machine with 15 dies, designed for processing both copper and aluminum wires. This machine is capable of reducing copper wire from an input diameter of 8 mm to an output range 2.00mm – 1.17 mm. For aluminum, it handles input diameters from 9.450mm , reducing it to an outlet range 2.00mm-1.20mm.

TECHNICAL SPECIFICATIONS
