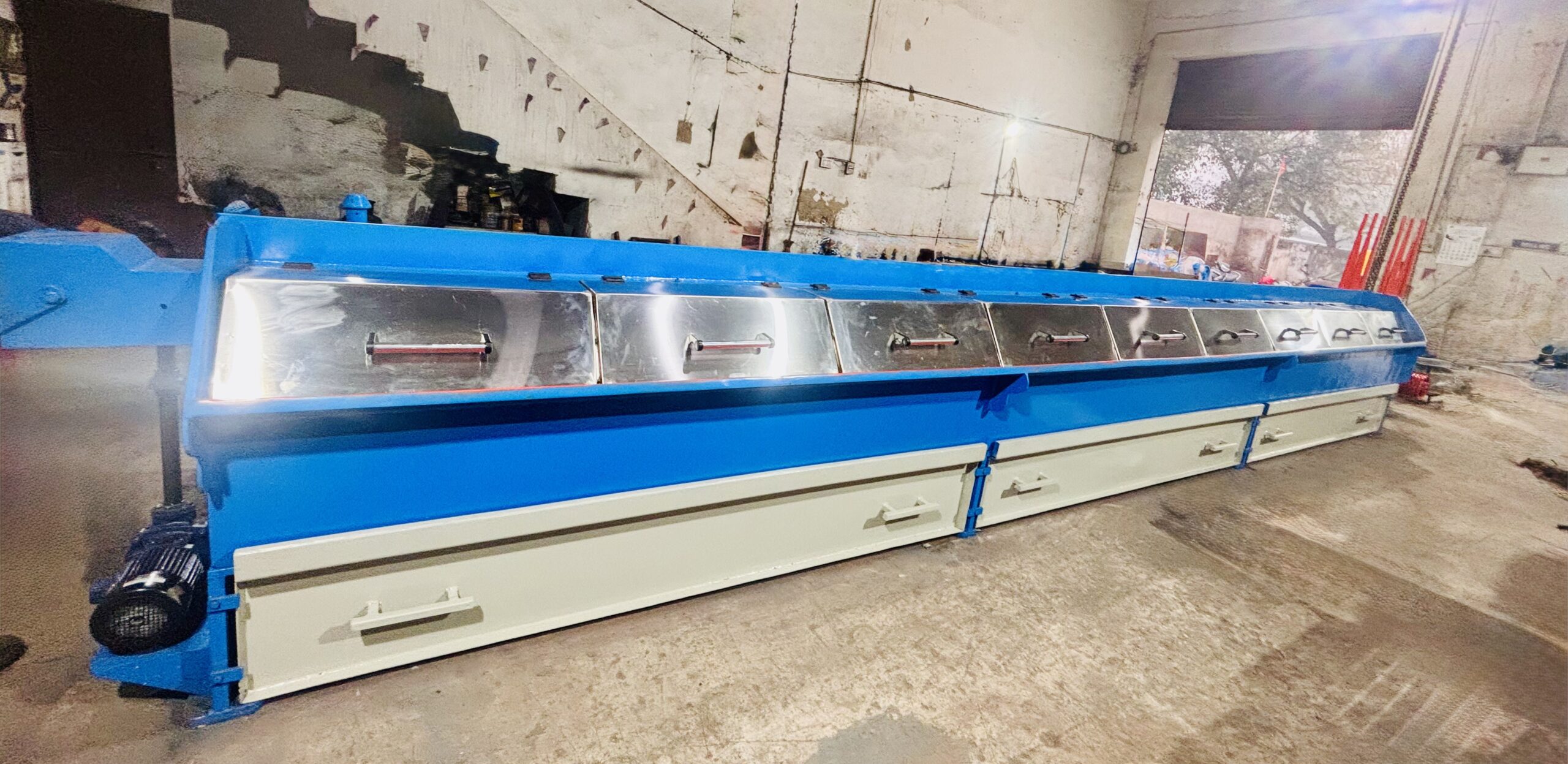

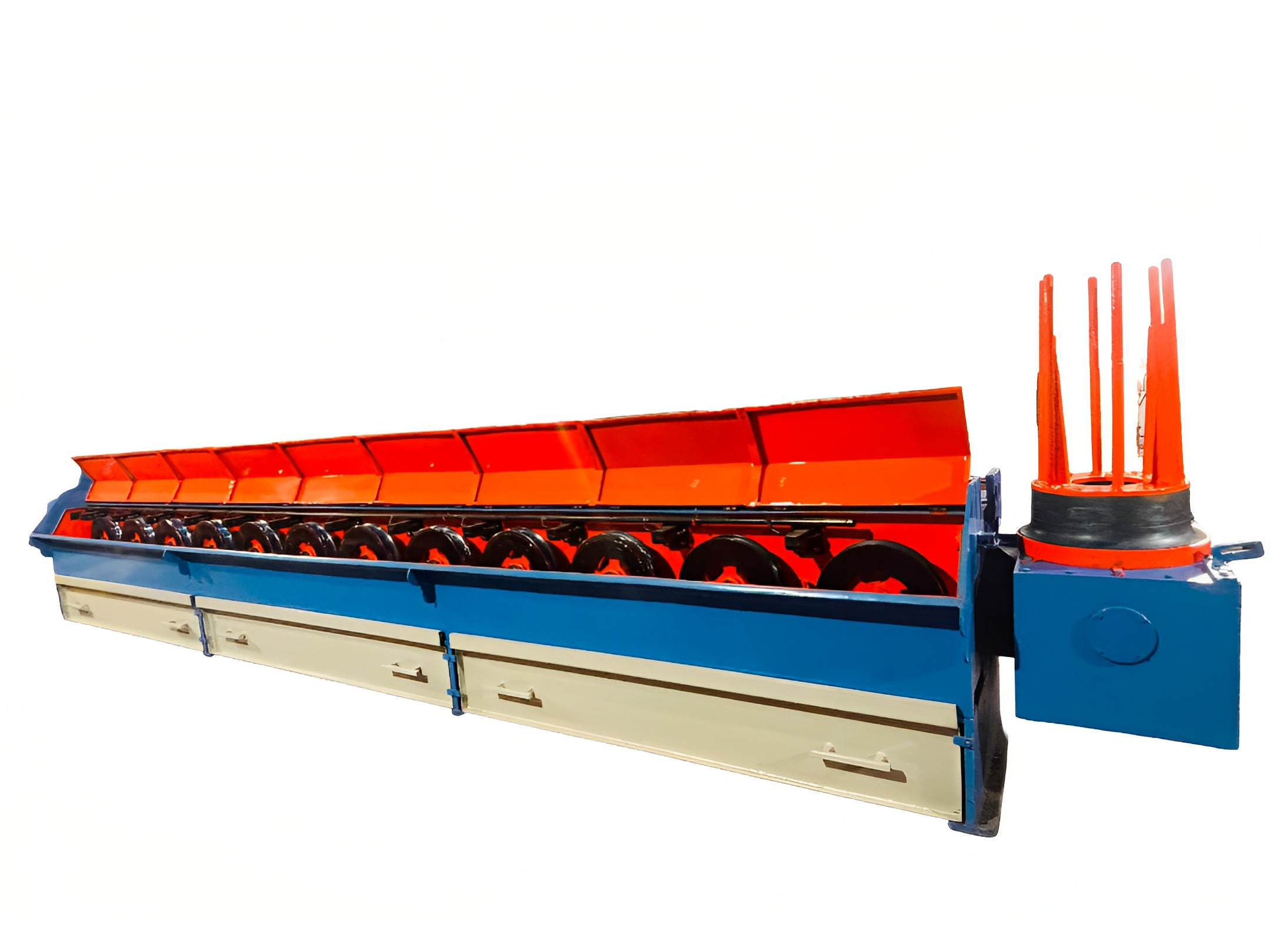

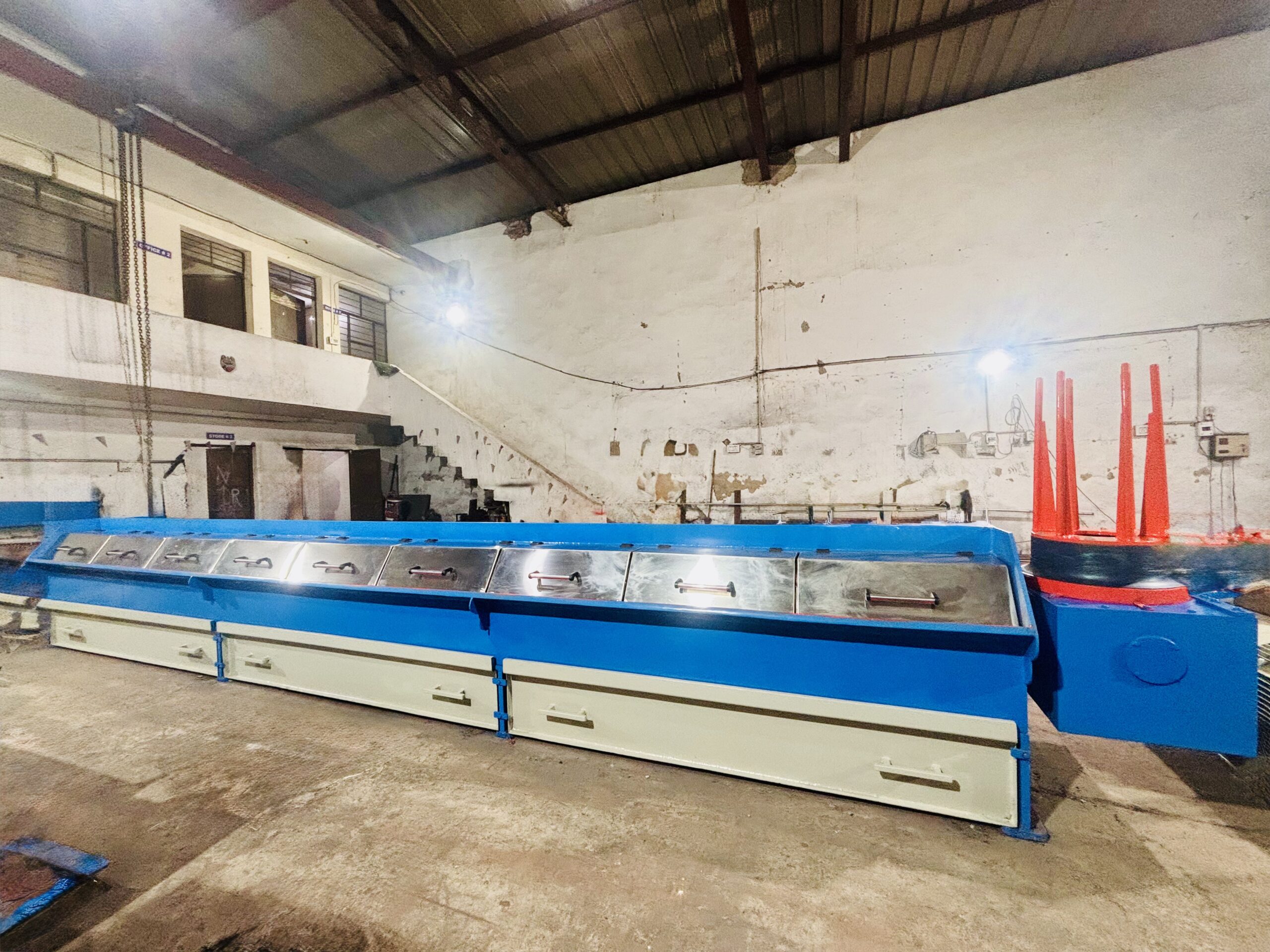

ROD BREAK DOWN MACHINE
Material Compatibility – Copper/Aluminum Automation Grade- Automatic
No. Of Dies – 13 Dies
Inlet wire diameter – 8.00MM (copper)
Outlet wire Range – 2.65mm-1.40mm
Production capacity – 750/m line speed
Power – 125 kw
CUSTOMIZATION AVAILABLE AS PER CLIENT REQUEST
For detailed information, pricing, or to request a customized quotation, please feel free to contact us via phone or email.
Our team will be happy to provide you with comprehensive details and tailor-made solutions designed to meet your specific requirements.
FEATURES
• The driving motors of drawing & final capstan will synchronously automatically.
• Digital control for motor are available for computer operation.
• Details regarding your wire drawing process can be shown on monitor for more efficiency.
• Transmission gears and bearings are enforced lubricant.
• Ring type drawing capstans for convenient maintenance and replacement.
• Speed: Speed options of 12-20 m/s are available based on customer requirements and size is also matter for running speed.
• Energy-Efficient Operation:-Uses energy-efficient components and drives. Reduces operating costs and
• environmental impact. Dust Protection:- Air filters and a magnetic system keep the machine clean and dust-free.
• The production machine will halt automatically once the specified meter reading is achieved.
• Machine will stop automatically if wire will break while on running time.
DG Mech Tech Pvt. Ltd. specializes in manufacturing 13-dmachines ie rod breakdown tailored for both copper and aluminum wire processing. These camouflet range of 2.65mm – 1.40 mm. For aluminum, the machines accommodate an inlet diameter of 9.450 mm, reducing it to an outlet range 3.20mm – 1.65 mm.
TECHNICAL SPECIFICATIONS
For Copper Wire |
DGMT 314/8 |
DGMT 314/9 |
DGMT 314/10 |
DGMT 314/11 |
DGMT 314/12 |
DGMT 314/13 |
Inlet Size |
8.00mm |
8.00mm |
8.00mm |
8.00mm |
8.00mm |
8.00mm |
Outlet Size |
2.73mm |
2.390mm |
2.050mm |
1.830mm |
1.600mm |
1.40mm |
For Aluminum Wire |
DGMT 314/8 |
DGMT 314/9 |
DGMT 314/10 |
DGMT 314/11 |
DGMT 314/12 |
DGMT 314/13 |
Outlet Size |
9.450mm |
9.450mm |
9.450mm |
9.450mm |
9.450mm |
9.450mm |
Inlet Size |
3.23mm |
2.83mm |
2.40mm |
2.160mm |
1.890mm |
1.65mm |
